Description
Operating Instruction Manual
This manual has been prepared for the owner and operators of exhaust cutout
valve kit.
Thank you for choosing our products, to enable the function in a normal
operating condition, avoiding the generation of some uncertainty, Please
install it under professional instruction.
Size: 51mm,60mm,63mm,76mm,89mm
Model NO: ZF-0203/Open Style ; ZF-0204/Closed Style
Applicable: 99% gasoline motor car
Function: Get the sound of sports car, Remote control and very easy.

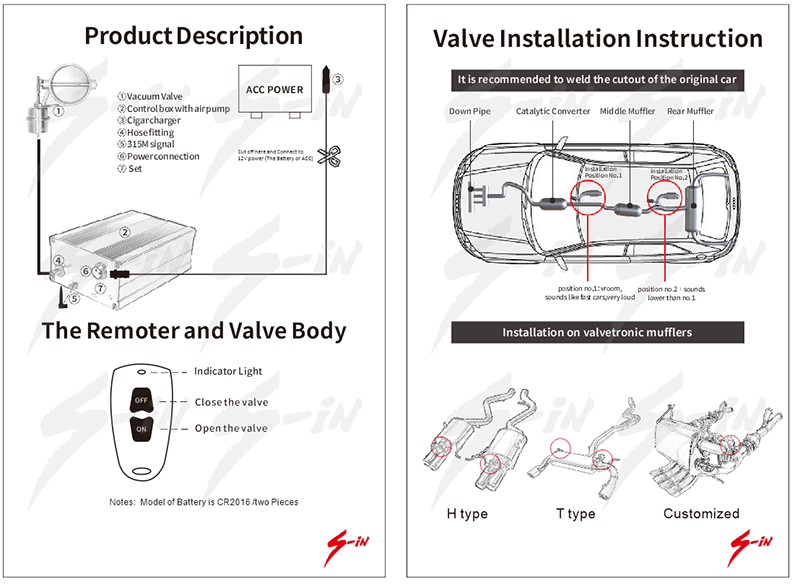

Notes: Install front and rear of exhaust drum for Naturally aspirated engine, And only install front of exhaust drum for engine that’s on forced induction through a turbocharger or a supercharger. Sounds very nice that in a gasoline engine car. but in diesel engine car that the sound is not as good as in a gasoline engine car. And special diesel engine with turbo, the sounds effect is very badly.
Power connection: 12V power supply, three ways to connect
1; Connect the cigarette lighter,
2; Connect the battery (turn off the engine no power, need fuse wire)
3; Connect ACC (turn off the engine without power, need fuse wire)

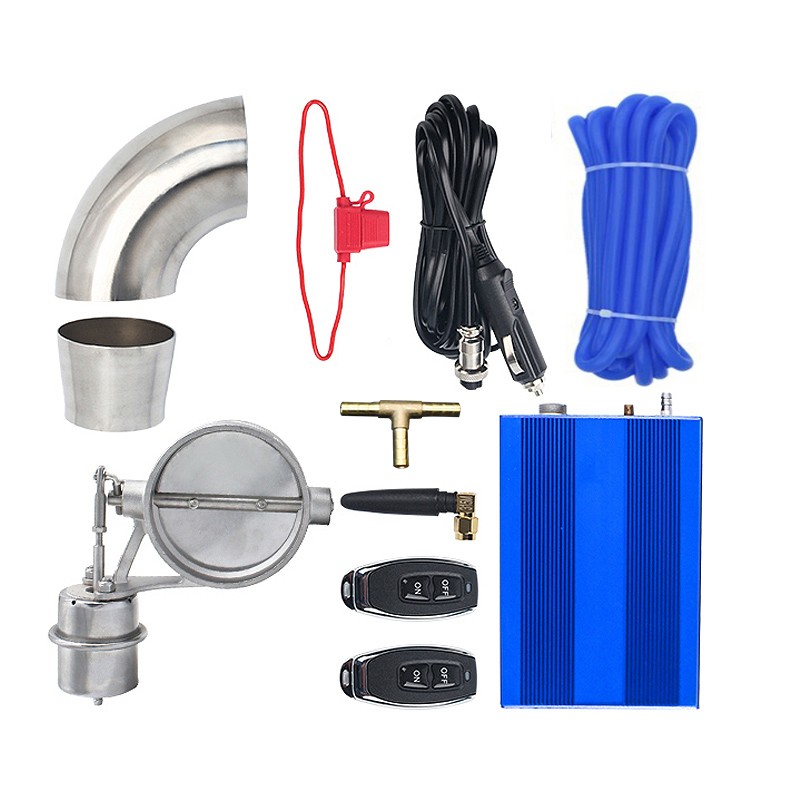

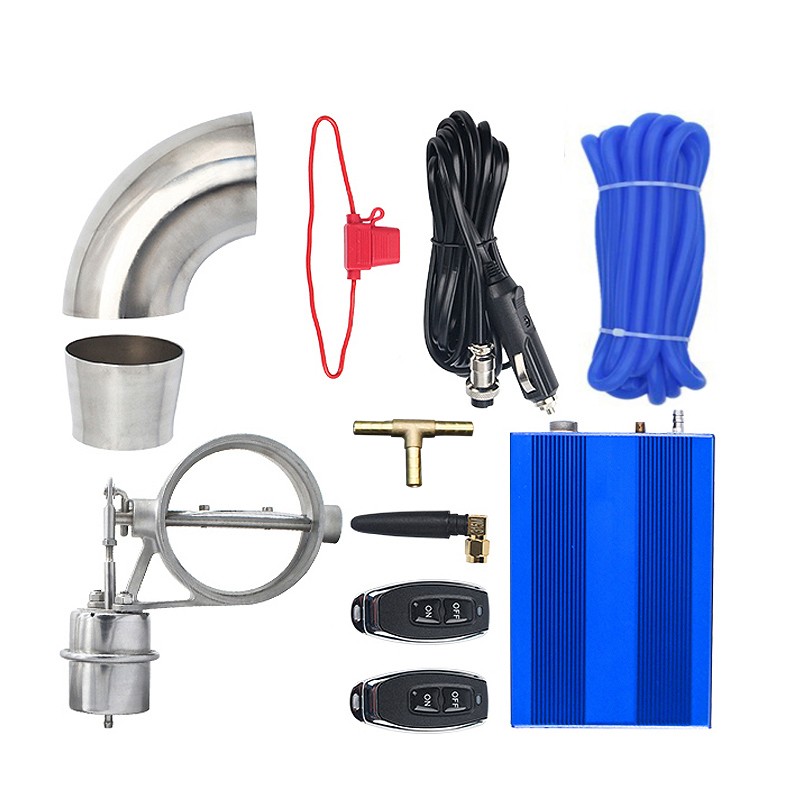

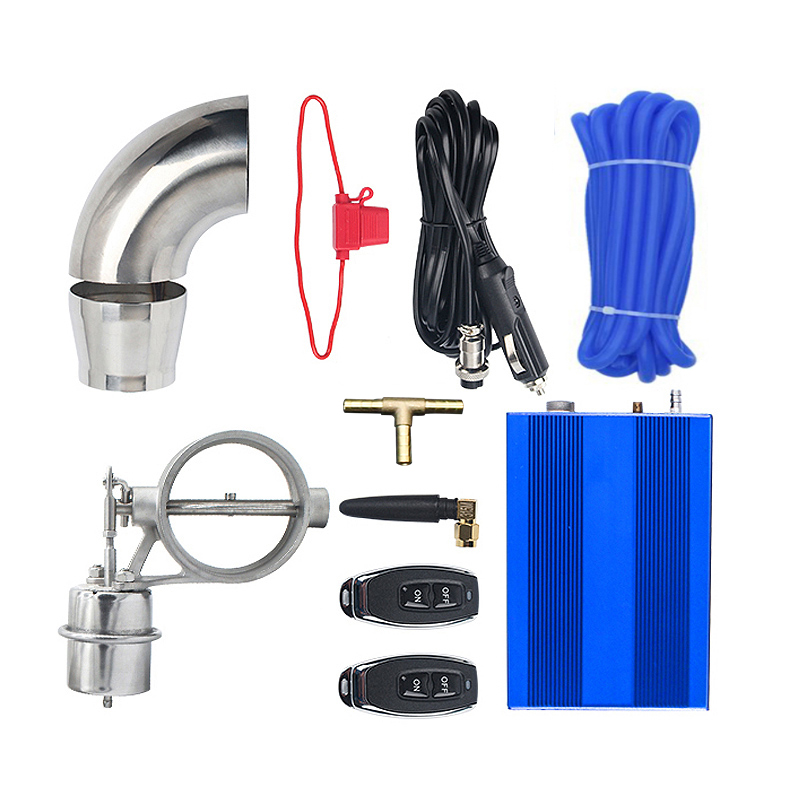

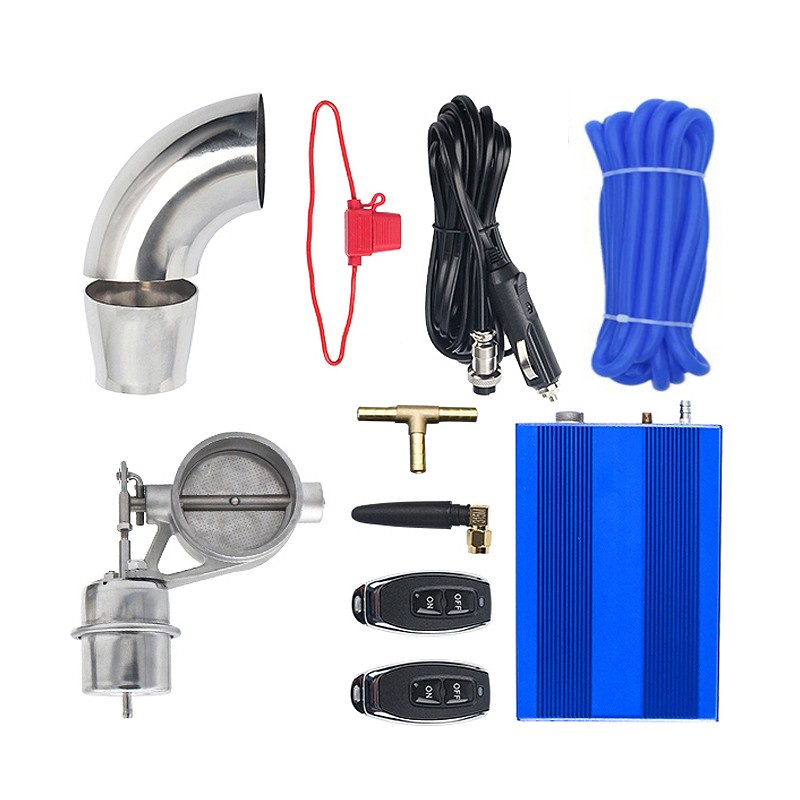

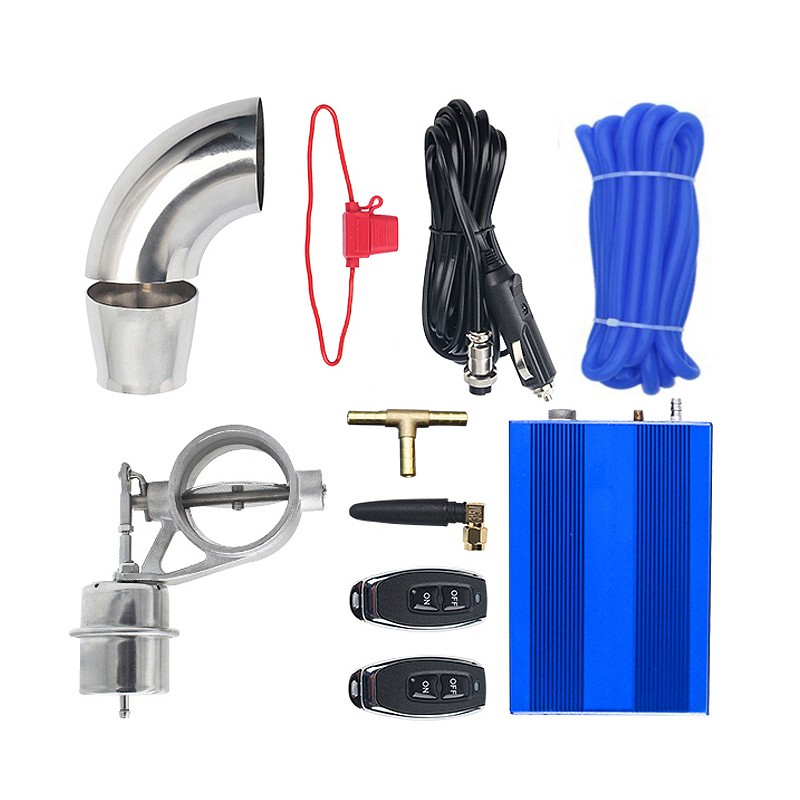

Components in package:
1; Vacuum valve(304 Stainless Steel)
2; Stainless steel square elbow
4; Adapter bonnet connection
5; vacuum pump
6; Remote controller /2PCS
7; Fuse wire
8; Power line
9; Vacuum air pipe
Remote control operation instructions:
With ON and OFF two button, for Sound ON and Sound OFF
Open style:
Closed Style:
